lm-ep57 hdmi extender 120m 4K HDMI+USB KVM Extender over IP with POE over single Cat5e/6 cable

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
LINK-MI
Model Number:
LM-EP57
Place of Origin:
Guangdong, China (Mainland)
Color:
Black
Support:
4k
compliant:
HDCP 2.2 / HDCP1.4
Protocol:
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
Support Fiber optical:
up to 60KM (Single Mode)
IR Frequency:
38 -56 KHZ
Support Audio format:
Stereo 192Kbps
distance:
120m over single Cat5e/6 cable
RS232 Baud rate:
Default 115200bps, total 8 kinds optional
Power supply:
DC 5V
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing Contents
1). Main Unit. HDMI Extender (Transmitter & Receiver)
2). 2x Power adapter DC 5V
3). 2x IR TX cables, 4x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 8x screws
6). 4x detachable mounting ears
7). Operating Instruction manual
8).2x Remote controller
Port
shenzhen
Lead Time :
3 DAYS

Introduction

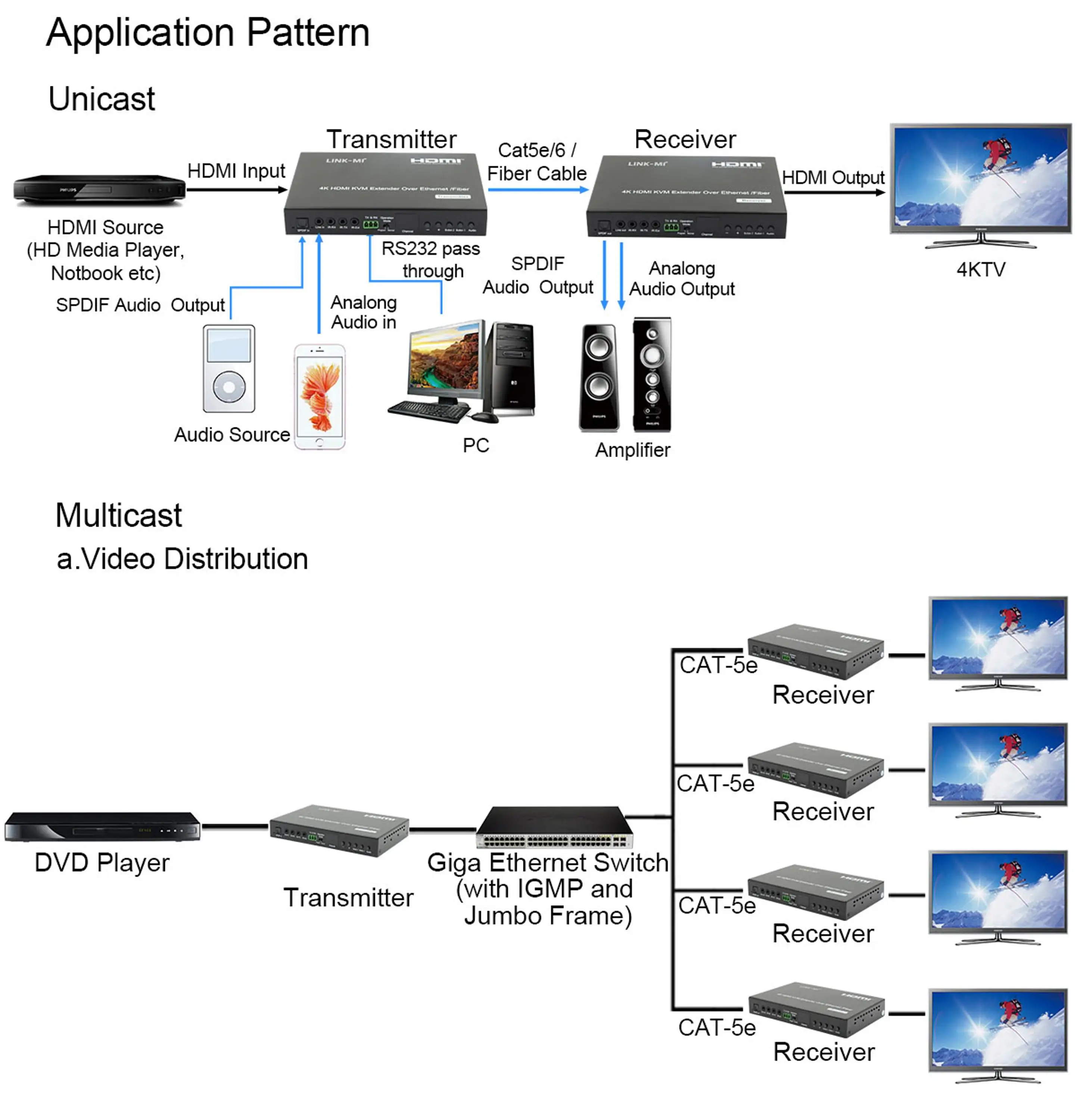

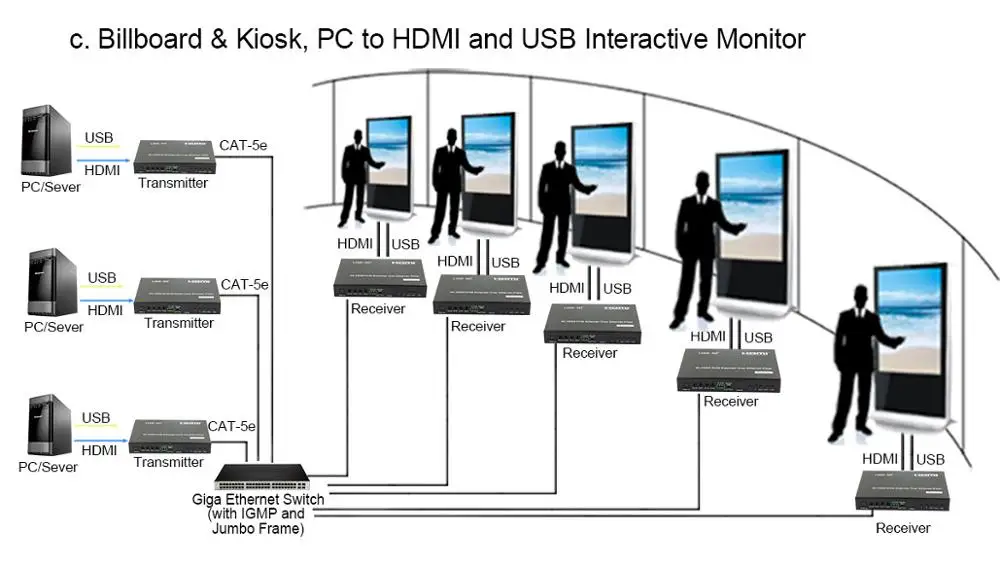

LINK-MI LM-EP57 The 4K HDMI & USB over IP Extender is a solution for audio, video and USB signal extension via Local Area Network (LAN). It can be used as audio, video and KVM extender over IP and applied to point to point, point to multi-point, multi-point to multi-point and video wall broadcast system controlled by USB, RS232, IR and configured the 4K HDMI & USB over IP Extender by WEB GUI and PC GUI. An easy installation system built up with Gigabit Ethernet switch which has IGMP function and CATx cable for extension or broadcast.



Features

1. 4k UHD HDMI over IP/Fiber Extension
2. USB2.0 over IP extension
3. Support transmission distance 120m over single Cat5e/6 cable
4. Support Fiber optical up to 60KM (Single Mode)
5. Support input 4k@60hz YUV 420 (Max), output 4k@30hz (Max)
6. HDCP 2.2 / HDCP1.4 compliant
7. Support Bi-Directional Wide Band IR (38KHZ-56KHZ) Pass through
8. Support RS232 pass through and control, Telnet command
9. With IR remote/Button to control the Group ID, with LED to show the Group ID
10. Support Dolby True HD, DTS-HD Master Audio
11. Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
12. Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction

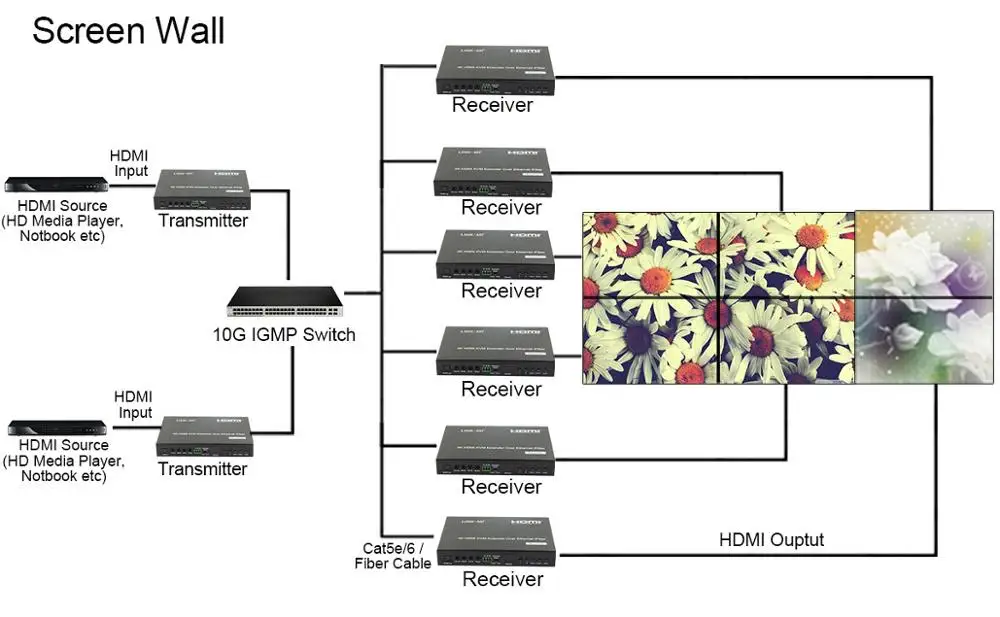

13. Support Unicast, Multicast, Video Wall system (Max 8x16), Output video Rotation
14. 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
15. 802.3af compliant POE, no need power supply when connecting with POE IGMP Switch
16. Support 3D
17. Support 5V-18V


Packing Contents
1). Main Unit. HDMI Extender (Transmitter & Receiver)
2). 2x Power adapter DC 5V
3). 2x IR TX cables, 4x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 8x screws
6). 4x detachable mounting ears
7). Operating Instruction manual
8).2x Remote controller
